Taking over Partial Restoration 1968 Mustang Convertible

by Steve
(Grand rapids, MI)

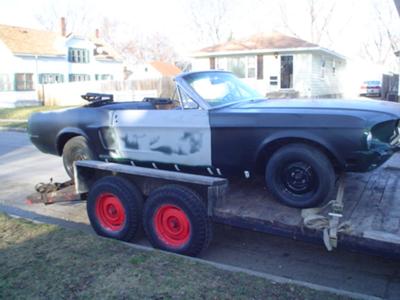

1968 Ford Mustang Convertible Restoration

1968 Ford Mustang Convertible Restoration

The car is a 1968 Mustang convertible, 6 cylinder, automatic. It must have been quite rusty.

The floor has been repaired with either patches or repair panels. The trunk floor has been repaired and has a new gas tank.

It has new rear fenders in place. The rockers are new. The trunk deck and back end has been replaced. The doors have been repaired.

The front torque boxes to the radiator support have been replaced or repaired. The front from headlight to headlight is new.

It has a new hood and front fenders. The rear springs and shocks have been replaced.

The front steering has been replaced including springs and shocks.

The engine looks brand new and has been rebuilt. The tranny functions, but am unsure of condition.

The convertible top frame is attached. The car is drivable.

As I've started working on it, I've noticed that the hood, fenders, and doors are hard to get lined up properly.

Is it possible when they re-built the unibody, that not all parts were welded in the right place? It looks like the inner fenders go up hill, so the fenders won't adjust to the door properly.

Also, the trunk deck is too wide for the opening. Is it possible the rear quarter fenders were welded too close together?

Maybe that's why the previous owner bailed on this project. He spent a ton of money, including a new windshield and complete interior.

Where do I start? Any suggestions?
Any information would be appreciated.
Thanks,
Steve

Hi Steve



This is going to be a long answer. I'll answer as best as I can, but feel free to ask more questions as you go along.

The good news is, you have new parts to work with. The bad news is, it looks like the previous owner didn't line things up properly.

Without seeing the car, my suggestion would be to start from the center and work outwards.

First, I'd recommend taking the car to a frame shop making sure that the frame is true. Once that's resolved, then it's time to move to the rear.

It does sound like the rear quarter panels (or maybe just one quarter panel side) and the rear fascia were welded too close together.

You're going to have to attach the trunk lid and line it up with the rear deck by the lip of the roof. Then close the trunk lid as low as possible and mark the fit right onto the quarter panels with a felt pen to see if your problem is one side or both.

Once you have that, you can decide if you need to cut one or both sides and re-weld them into the right places.

If you're sure your doors are lined up and level, you can use the crease in the body side panels to get an idea of how your front end lines up.

Slight adjustments can be done to shim the front fenders, but if there's any major differences, you'll probably have to cut and reattach the inner pieces.

Good Luck!

B.







Comments for Taking over Partial Restoration 1968 Mustang Convertible

Click here to add your own comments

1968 Mustang restore
by: Steve

Hi, I had told you about a partial Restoration on a 68 convertible.

Well I had an opportunity to get a 1963 Ford Econoline pickup, so I sold the mustang. I will say it was a good experience, doing research, etc.

I do enjoy ready all the comments to your forum. Thanks for your time!
Steve

1968 Mustang Specs
by: steve

I have been measuring the back end of the Mustang convertible.

I have determined that the body is off center by 3/8 to 1/2" to the right. The fenders at the outer most corners of the valance is at least 1" wider than it should be.

I think the misalignment starts up by the back seat/floor area. I have the frame specs. but would like to know if their are specs for body parts, like spacing and opening dimensions, ETC.

I'm just getting back to the Mustang after a quick restore on a 1984 Dodge W250. ( From Alaska)
Thanks Steve

Hi Steve

I don't have body specs for what you're asking, but I'm hoping someone can comment on this and point you in the right direction.

You might also try contacting a local body shop or shop that specializes on restoring classics, like your 1968 Ford Mustang.


1968 Mustang - Take over partial resto.
by: Steve

Thanks for the advice. I have another question, was the engine compartment painted body color or black? Thanks again,
Steve

Hey Steve

The engine compartment was painted a satin black.
